Traditional biomass and combined heat and power (CHP) plants convert organic materials into electricity and heat — but typically release CO₂ directly into the atmosphere.

ISEN upgrades these facilities into fully circular, carbon-neutral/negative energy hubs by capturing biogenic emissions using membrane separation, recovering waste heat through three-tier thermal cascades, and integrating renewable hydrogen for synthetic fuel production—all within existing infrastructure footprints.

The membrane-based architecture supports BECCU (Bio-Energy with Carbon Capture and Utilization) deployment by enabling CO₂ separation with minimal process complexity.

By avoiding chemical solvents, thermal regeneration systems, and associated waste streams, ISEN improves the practical and economic feasibility of carbon-negative biomass operation at mid-scale plants (10-100 MW), where operational simplicity, high uptime, and brownfield integration are critical success factors.

CO₂ Capture and BECCS Integration

Bio-Energy with Carbon Capture and Utilization (BECCU) lies at the heart of ISEN Biomass Integration—converting biogenic CO₂ into valuable products rather than requiring geological storage infrastructure.

ISEN integrates directly with biomass flue-gas systems via polymeric membrane separation—avoiding the absorbers, stripper columns, reboilers, and chemical handling infrastructure required by traditional amine-based capture systems.

Captured CO₂ from combustion or gasification is:

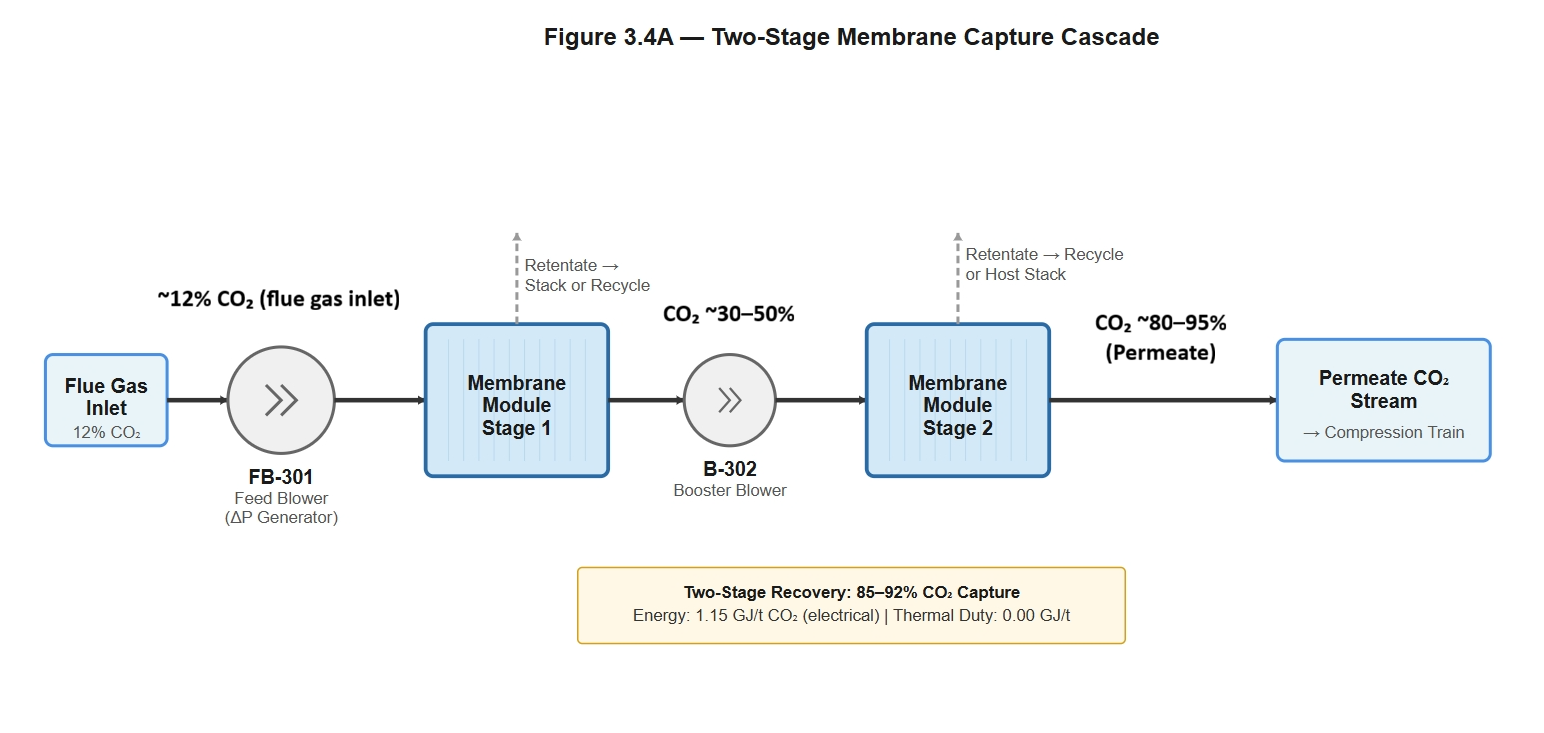

1. Purified through multi-stage membrane cascade (75-85% recovery, ≥98% purity)
2. Compressed and dried to synthesis-grade specifications (15-20 bar, <50 ppm H₂O)
3. Converted into revenue-generating products:
   • Primary pathway: Synthetic fuel synthesis (e-methanol, e-methane, SAF)
   • Secondary pathway: Industrial CO₂ applications (greenhouses, carbonation, chemicals)
   • Optional pathway: Geological storage where infrastructure exists (traditional BECCS)

Key benefits:

• Achieves true negative emissions from biogenic carbon
• Generates multiple revenue streams: fuel sales + district heat + EU ETS carbon credits
• Strengthens compliance with EU Green Deal and Fit for 55 frameworks
• No geological storage infrastructure required for primary operation mode

Hydrogen and Power-to-X Coupling

ISEN integrates renewable hydrogen with captured biogenic CO₂ to synthesize carbon-neutral fuels—upgrading plant output without increasing biomass feedstock demand.

Hydrogen Sourcing Options:

• Primary mode: Connection to regional hydrogen pipeline networks or nearby electrolyzer facilities
• Optional mode: On-site modular electrolyzer for remote locations or sites with abundant curtailed renewable electricity
• Future-ready: Compatible with blue hydrogen (natural gas + CCS) during transition periods where renewable H₂ supply is constrained

The captured CO₂ reacts with hydrogen via catalytic synthesis to produce:

• e-Methanol (liquid fuel, chemical feedstock, maritime fuel)
• e-Methane/SNG (synthetic natural gas for grid injection or vehicle fuel)
• SAF precursors (sustainable aviation fuel via alcohol-to-jet pathways)

Key benefits:

• Converts excess wind and solar power into high-value, storable liquid fuels
• Increases total energy yield by 20-25% through carbon utilization
• Enables multi-hour energy storage and flexible grid balancing without battery costs
• Creates new revenue streams from products selling at 500-700 €/t (methanol) vs 80-100 €/t (carbon credits alone)

Future Integration Pathways

ISEN's modular architecture is designed to accommodate emerging carbon utilization technologies as they reach commercial maturity—ensuring long-term adaptability without requiring fundamental system redesign.

Current Status (TRL 6-7):

• Membrane-based CO₂ capture (proven industrial technology)
• External hydrogen integration (pipeline or electrolyzer)
• Methanol synthesis (commercial catalyst systems)
• Three-tier heat recovery (standard thermal engineering)

Future-Ready Integration Points:

• Advanced reforming technologies: As pilot-scale carbon reforming systems (currently demonstrated in U.S. research programs) reach commercial deployment, ISEN's modular design can integrate these as optional add-on modules
• Direct air capture coupling: Supplement biogenic CO₂ with atmospheric capture for increased synthetic fuel production
• Enhanced synthesis catalysts: Next-generation catalysts for improved conversion efficiency and product selectivity
• Biochemical pathways: Integration with fermentation or enzymatic CO₂ conversion systems

This future-readiness ensures that ISEN installations remain competitive and can adopt breakthrough technologies without stranded asset risk.

Thermal Recovery and District Heating Integration

ISEN maximizes efficiency through a three-tier thermal cascade that recovers heat across multiple temperature levels from both CO₂ capture and synthesis stages. Recovered heat is redirected to:

• Local district-heating networks (supply: 90-130°C, return: 65-80°C)
• On-site process loops (biomass drying, digestate treatment, building heating)
• Seasonal storage systems (where available)

Thermal Recovery Architecture:

• Tier 1 (High-grade): Methanol synthesis reactor heat (200-280°C) → Process steam or high-temperature district heating
• Tier 2 (Medium-grade): Compression intercooler heat (90-130°C) → District heating supply network
• Tier 3 (Low-grade): Aftercooler and dryer regeneration heat (65-80°C) → District heating return line

Typical Recovery: 20-30 GWh/year thermal energy (50,000 t/year CO₂ capacity plant)

Key benefits:

• Raises total plant efficiency to >90% (vs 35-45% electricity-only operation)
• Monetizes thermal energy otherwise lost: 1-1.5 M€/year revenue at 8-10 €/MWh
• Supports municipal energy independence and decarbonization of heating sector
• Reverses traditional economics: Heat becomes revenue output instead of required input (vs amine systems requiring 2.5-4.0 GJ/t steam)

Digital Control & ESG Reporting

All ISEN-upgraded biomass systems are controlled by IDOS (ISEN Digital Optimization System)—an AI-driven platform that optimizes process performance in real-time and feeds operational data to the Freyra ESG Dashboard for compliance reporting.

IDOS Process Optimization:

• Real-time efficiency optimization: Adjusts capture rates, compression loads, and synthesis parameters based on electricity prices and heat demand
• Predictive maintenance forecasting: Monitors membrane performance, compressor health, and catalyst activity to schedule maintenance before failures
• Economic dispatch control: Maximizes revenue by balancing methanol production vs heat export vs grid flexibility services
• Performance benchmarking: Continuous comparison against design specifications and similar installations

Freyra ESG Dashboard Reporting:

• CO₂ capture volume and fuel output (real-time mass balance verification)
• Energy flows: Electricity consumption, hydrogen input, heat recovery, and grid interactions
• Verified carbon credits: Automated EU ETS and CCfD documentation with third-party verification integration
• ESG compliance metrics: Scopes 1-3 carbon accounting, CSRD reporting, ISO 14064 alignment

Quantified Value:

• 17% OPEX reduction through predictive maintenance and adaptive operation
• 2-4 M€/year additional profit from optimization vs baseline operation
• >99% uptime through early fault detection and proactive intervention

Key benefits:

• Transparent, investor-grade sustainability metrics with real-time verification
• Predictive operation reduces unplanned downtime by 60-80% vs reactive maintenance
• Seamless regulatory integration: GHG Protocol, CSRD, ISO 14064, EU ETS, CBAM-ready
• Remote monitoring and diagnostics: Reduces on-site staffing requirements

Local Impact and Circular Economy

ISEN Biomass Integration promotes regional self-sufficiency and just transition by creating commercially viable carbon-negative energy infrastructure that strengthens local economies:

Economic Impact:

• Creates 15-25 skilled green-tech jobs per installation (operations, maintenance, engineering)
• Generates new revenue streams from synthetic fuels, district heat, and carbon credits
• Retains energy value locally rather than exporting to fossil fuel importers
• Increases plant profitability 40-60% vs electricity-only operation

Circular Economy Integration:

• Agricultural residue valorization: Converts crop waste and forestry byproducts into valuable energy carriers
• Carbon cycling: Returns biogenic CO₂ to productive use (synthetic fuels, greenhouses, industrial applications)
• Nutrient recovery: Digestate and ash from biomass processes support local agriculture
• Industrial symbiosis: Connects energy, agriculture, transport, and heating sectors in closed loops

Community Benefits:

• Energy sovereignty: Reduces dependence on imported fossil fuels and volatile international markets
• Grid stability: Provides flexible, dispatchable renewable energy and balancing services
• Climate leadership: Enables municipalities to achieve carbon-negative status and meet EU Green Deal targets
• Skills development: Trains local workforce in advanced energy technologies for long-term employment

People must be a priority in the Green Economy—ISEN ensures that decarbonization creates local prosperity, not just environmental benefits.

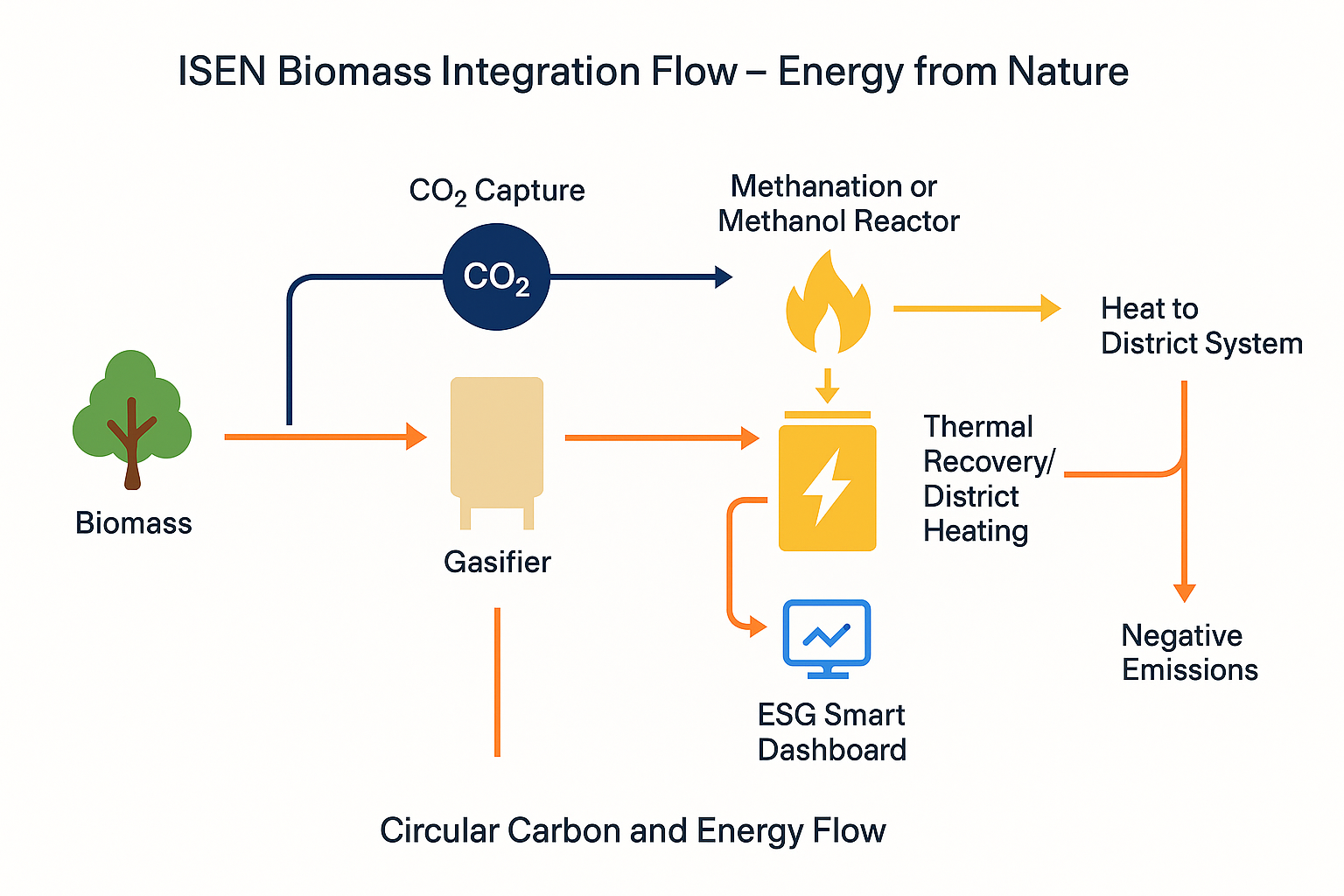

ISEN Biomass Integration Flow – Turning Carbon into Opportunity

The ISEN Biomass Integration Flow diagram illustrates the complete value chain from biogenic CO₂ emissions to revenue-generating products:

Process Flow:

1. Biomass Combustion/Gasification → Flue gas with 8-15% CO₂ concentration
2. Membrane Separation → Captures 75-85% of CO₂ without solvents or thermal regeneration
3. Compression & Drying → Delivers synthesis-grade CO₂ (≥98% purity, 15-20 bar)
4. Hydrogen Integration → Combines captured CO₂ with renewable H₂ (pipeline or on-site electrolyzer)
5. Catalytic Synthesis → Produces e-methanol, e-methane, or SAF precursors
6. Three-Tier Heat Recovery → Exports 20-30 GWh/year to district heating networks
7. Carbon Accounting → Verifies negative emissions and generates EU ETS credits

Value Creation:

• Fuel products: 25-30 kt/year e-methanol at 500-700 €/t
• District heat: 20-30 GWh/year at 8-10 €/MWh
• Carbon credits: 50 kt/year negative emissions at 80-100 €/t
• Total revenue: 30.8-33.8 M€/year from diversified streams

This integrated approach transforms biogenic CO₂ from a compliance cost into multiple revenue streams while achieving carbon-negative operations—creating commercially viable BECCU (Bio-Energy with Carbon Capture and Utilization) infrastructure.
